1/43 Bf 109 f4 - icm

GraemeB

Well-known member
Registered
Lid geworden
24 sep 2012
Berichten
190
1/48 BF 109 F4 - ICM kit

Well chaps as you have probably read from Erwin's post we have decided to have a build off / joint build and that it would be a BF 109.
I decided on the BF 109 F-4 and Erwin doing the FiSK

Here it is then in all its glory, I will be building OOB with a bit of scratch






Above is the option that I will be doing , the decal set is part of those supplied with the kit


Above a photo of the actual plane

Laatst bewerkt:

Lucske

Well-known member
Registered
Lid geworden
19 dec 2009
Berichten
552
Beautiful plane,
1/43 scale I had never heard of it:8
Probably a writing error.;)

Good luck, I follow

Grtz.

Luc8)


GraemeB

Well-known member
Registered
Lid geworden
24 sep 2012
Berichten
190
Indeed Lucske it is 1/48, operator problems


Well here is some catchup, i have started this build a while ago so am a bit ahead of it

Here is progress on the engine OOB with some scratch build.








i did have a color issue with the interior , i dont think it is right but the plan call or pale green, and the color used is an RLM color, i just applied a wash to tone it down


Thank you for looking


Roy vd M.

Well-known member
Registered
Lid geworden
13 apr 2014
Berichten
6.986
Most modellers know it as RLM02.

Nice plumbing, weathering / dirt is a bit strong for my taste.


coachke

V.I.P.
V.I.P.
Lid geworden
14 apr 2014
Berichten
9.168
Dear GraemeB i am not so good in Englisch sorry but i like this build verry match
Marc


Rudi3290

Well-known member
Registered
Lid geworden
9 jul 2018
Berichten
1.133
WOW so small and such a nice paintingjob I follow this build, may-bay not from the first seat but at least from the second seat ;-)


Swaken

Well-known member
Registered
Lid geworden
8 feb 2009
Berichten
3.516
Hey G,

Nice build so far. I follow Roy, the wash is al little bit te strong.
Youre details on the engine looks great… ;) :)


GraemeB

Well-known member
Registered
Lid geworden
24 sep 2012
Berichten
190
Thank you for the comments appreciated


Dear GraemeB i am not so good in Englisch sorry but i like this build verry match
Marc

No hassle at all you are most welcome to communicate in Dutch if you like.


@ Roy and Swaken

Comments on the weathering is noted and i will remember that for the next one

Laatst bewerkt:

GraemeB

Well-known member
Registered
Lid geworden
24 sep 2012
Berichten
190
Well here for the next update .

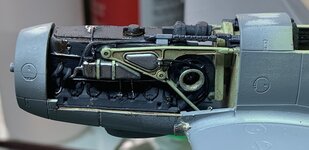

The first issue with this kit, i think it is a great idea from ICM to make the nose of this plane comprise 5 separate parts, however the problem is that once you build the engine complete and install it as per the plan then you cannot install the engine covers in the closed position and I wanted to have only the one side open,
therefore i needed to trim down the completed engine on the one side as well as thin down the engine cover on the left side to get it to close.



Very sad indeed , but you need to do what you need to do.










Above the cover is on and it looks just fine i think

Now for some primer


Lt D

Well-known member
Registered
Lid geworden
16 mei 2015
Berichten
186
"Very sad indeed , but you need to do what you need to do."

A man's got to do...

Great details added!
Your built is going steady...

I like the chosen camo version.

Gr
Thiery


Roy vd M.

Well-known member
Registered
Lid geworden
13 apr 2014
Berichten
6.986
Same goes for the 1/32 Trumpeter kit. It’s just an incredibly large engine for an incredibly small engine bay. Kit makers tend to forget about that.


GraemeB

Well-known member
Registered
Lid geworden
24 sep 2012
Berichten
190
1/48 BF 109 F4 - ICM kit

Well time for an update, while building the Volvo engine I used the in-between time to finish this little guy off.








bf_109_yellow_12_.7jpeg


Hope you enjoyed it

Comments most welcome

Cheers G


Erwin

V.I.P.
V.I.P.
Lid geworden
5 feb 2009
Berichten
7.884
Well done Graeme, you did a nice job there and that open engine bay gives it that little bit special.


GraemeB

Well-known member
Registered
Lid geworden
24 sep 2012
Berichten
190
Thanks for the Kind comments chaps, much appreciated

Cheers G


StevenVD

Well-known member
Registered
Lid geworden
12 jul 2012
Berichten
3.607
A fine result, Graeme. I wouldn't mind about the chunk you had to remove from the engine if it's covered up after all. Nice camo scheme too. One remark would be the upper tail centerline panelline, I think there should be none as demonstrated on the boxart. It's easy to be mistaken if you look at paneling schemes because the antenna wire looks like a line, but I think it runs only on the tail underside.


GraemeB

Well-known member
Registered
Lid geworden
24 sep 2012
Berichten
190
Hi Steven, thank you for your comment and the point regarding the panel lines on the spine of the fuselage, this point Erwin and I discussed as well, I knew that there would be some controversy regarding it,

However, I have added a few photos of actual aircraft indicating that in this case upper panel lines are correct and not only on the BF 109 but on other specific aircraft as well.

Britmodeler has an article covering this as well.

It must also be noted how some of the panels don't line up either, so in my opinion accuracy here on the model can also be overlooked :)








Thanks again for all the comments
G


Pascal

Moderator
Moderator
Lid geworden
20 feb 2015
Berichten
6.072
Altijd tof dat er foto's bij jullie uitleg zijn dan begrijp ik beter over wat jullie het hebben.
Nu ben ik mee wat Steven bedoelde.
